Room Controll, Room Controll
Ephesus 4 gang room controler

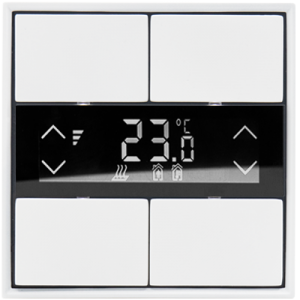

Ephesus 4 Gang Room Controller
The I-Luxus 4 Gang KNX Thermostat with capacitive touch screen can be used for switching, dimming, shutter&blind control. HVAC functionalities such as cooling and heating or fan coil control are supported. Values from the embedded temperature and humidity sensor are displayed on the LCD screen. Additionally, embedded ambient sensor and light sensor can be added. All parameters can be changed using ETS and send periodically to the KNX Bus.
LXT – 204 -BWH
| Available colors |  |
| Description | Displays environment humidity and temperature on the screen 4 integrated push buttons 4 status LEDs on the push buttons for operation feedback Switching, dimming, shutter&blind, HVAC controls, scenes and value control functions are available with push buttons Comfort, standby and economy modes are selectable Displays the fan level of HVAC products on the screen Displays window status using an external magnetic sensor EU 2M standard box Personalize your buttons with different icons 8 mm thickness 3 different colors of status LEDs (White, Blue and Amber) |
| Standards | EN50491-5-1/-2/-3 EN50581 EN61000-6-2/-3 |
| Certification | KNX Certified |
| Materials | Zamac |
| Dimension | 92 x 92 x 33,4 mm dimension |
| Weight | 165 g |
| DataSheet | Downlod |
